8 Channels UHF Wireless Conference Microphone

WM-E80
1. 8 channels can be used at the same time.
2. UHF transmission delay is less.
3. One-key frequency selection, easy to use.
4. Dedicated sound for meetings.
Username:*
Email:*
Message:*
  • Description
  • Attributes

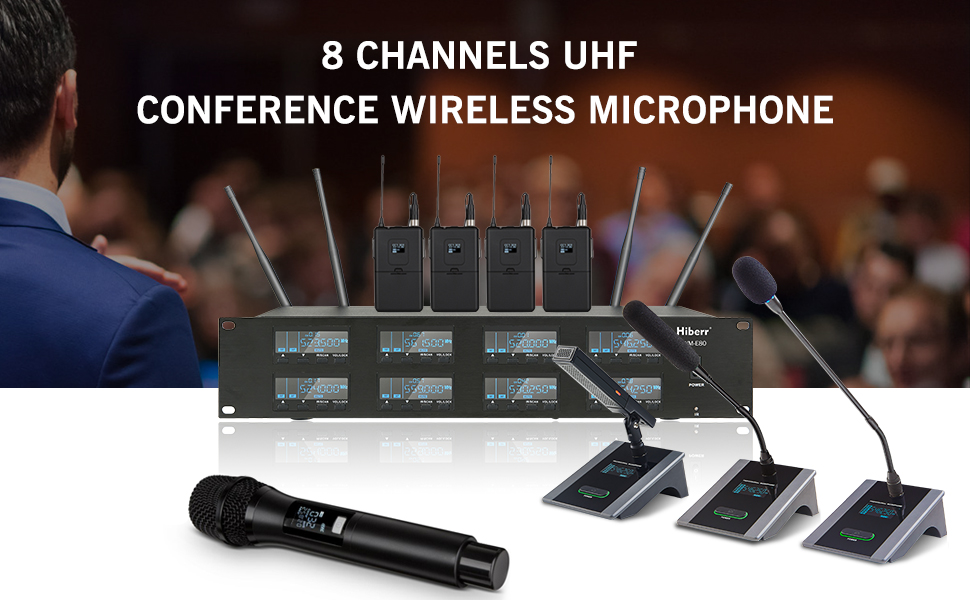

wireless conference microphone detail

1. 8 channels can be used at the same time.
2. UHF transmission delay is less..
4. One-key frequency selection, easy to use.
5. Dedicated sound for meetings.


wireless conference microphone pickup head


Conference Audio Pickup Head

Special pickup for conference, clear voice, high sensitivity.

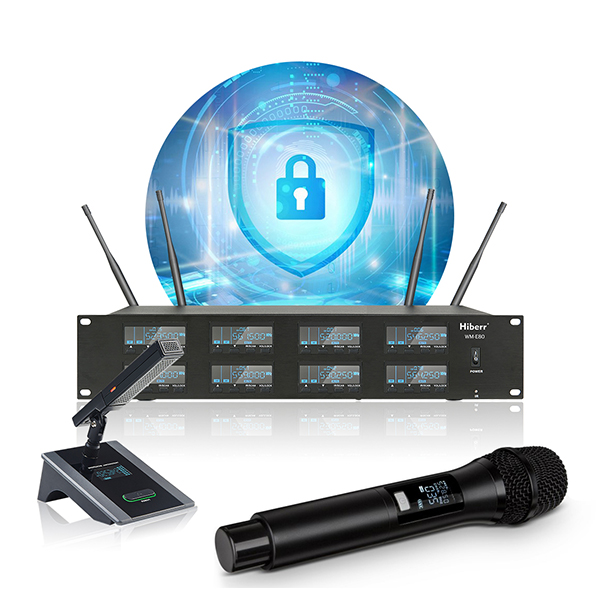

wireless conference microphone encryption


AES 256 Encryption

Built-in AES 256 encryption module, which can greatly improve the security of signal transmission.



wireless conference microphone uhf transmission


UHF analog signal transmission

UHF analog signal transmission, very little delay and strong compatibility.

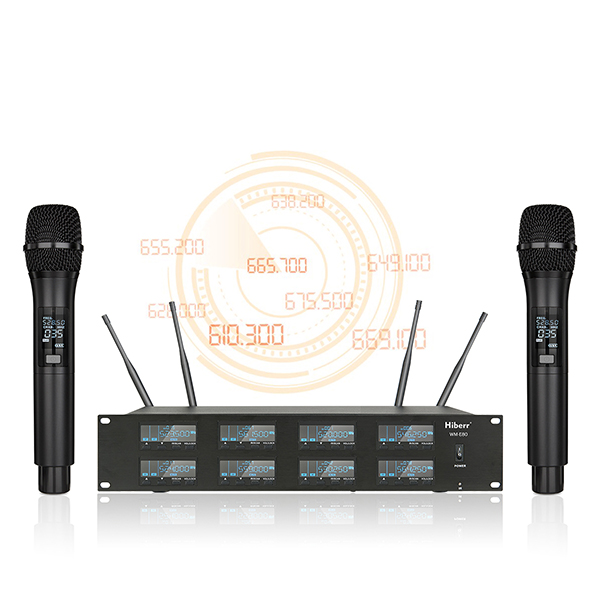

wireless conference microphone frequency sweep



Automatic Frequency Sweep

Automatic frequency sweep to create the most reliable connection with the least time and effort.

Receiver
Frequency range450 - 970 MHz
Number of adjustable channels120 * 2
Frequency stability0.002PPM
Receive sensitivity-105dB
Audio frequency response60Hz- 18KHz
Harmonic distortion<0.5%
Signal-to-noise ratio>105dB
Dynamic range105dB
Maximum frequency deviation±48KHz
Spurious suppression≥75dB
Audio outputbalanced output and unbalanced output
Power supply12-18V DC/1000mA
Handheld Transmitter
Frequency range450 - 970 MHz
Maximum number of channels120 * 2
Output power5mW / 30mW
Secondary wave suppression>-70dBc
Bandwidth60MHz
Distortion<0.5%
Maximum modulation depth±48kHZ
Signal-to-noise ratio>105dB
Frequency response60-15KHZ
Input voltage rangemic 1V max
Power supply2 X1.5V(AA)
Battery life10h
Bodypack Transmitter
Frequency range450 - 970 MHz
Maximum number of channels240
Output power30mW
Secondary wave suppression>-70dBc
Bandwidth60MHz
Maximum modulation depth±48kHZ
Frequency response60-18KHZ
Signal-to-noise ratio>105dB
Distortion<0.5%
Input voltage range0.8V max
Power supply2 X1.5V(AA)
Battery life10h
